Alert Ingestion

Learn how alerts are ingested into Blink’s automated case management pipeline from external sources.

Alert ingestion workflows capture alerts in real time using either webhooks (vendor-pushed events) or polling (periodic checks for new alerts). When triggered, the workflow creates an alert record in Blink’s Case Management platform using the alert’s event payload received from the vendor source.

Use the Deployment Wizard to configure alert ingestion without manually setting up workflows, field mappings, or supporting logic. Simply select an ingestion source, create a valid connection, and optionally add filters to reduce noise. Blink automatically imports the required managed workflows and applies the necessary configuration, mappings, and logic.

---

Alert Ingestion Workflows Structure

Each alert ingestion workflow consists of one or two key steps:

Event-Based Trigger: Initiates the workflow when a new alert is detected, either via webhook or polling. Webhooks provide real-time notification without delay, while polling ensures alerts are retrieved on a regular schedule if webhooks are not available.

Alert Retrieval (Optional): In some cases, the initial event does not include all necessary alert details. When this happens, an additional API call is made to the vendor’s platform to retrieve the full alert payload. For example, with integrations like CrowdStrike, the webhook only provides a reference ID, requiring a follow-up request to gather complete alert information.

Create Alert: Once the alert data is collected, this step creates a new alert record within Blink’s Case Management system, ensuring the alert is properly logged for tracking, investigation, and response.

Create Alert Action Fields

Parameter	Description
Name	The name of the Alert
Vendor	The Vendor associated with the alert
Event	The Alert Event
Alert Type	The alert type defines the classification or category assigned to the alert.
Add New Values To The Alert Types List	When checked, a new alert type will be added to the alert types list in the Case Management Settings.
Severity	This is the severity rank of your Case. If you don’t want to use the built-in severity levels, you can map severity values from an incoming alert payloads to Blink’s system severity levels (e.g., ‘10’ → ‘Low’). Use the mapping settings in Advanced Settings.
Link Cases	The Name and ID of the Case you want to add to this Alert to
Description	A brief explanation explaining the Alert
Custom Fields (JSON Format)	Add a Custom Field in JSON format. Please note that this applies only if you have manually added a custom record column to the subject table.
Advanced- Dedup Table	The selected table to evaluate the duplicated condition (Dedup Condition) against.
Advanced- Dedup Condition	The duplicate condition to check whether to insert the record or not. When the condition is met, the record will not be inserted.
Advanced- Linked Observables	The Name and ID of the Observable you want to link to this Alert
Advanced- Linked Alerts	The Name and ID of the Alert you want to link to this Alert.
Advanced- Linked Attachments	The Name and ID of the Attachment you want to link to this Alert.
Advanced- Linked Tasks	The Name and ID of the Tasks you want to link to this Alert.
Advanced- Default Severity	Default severity for un-resolved severities.
Advanced- Low Severity Mapping	A comma-separated list of vendor-specific severity values that map to Blink’s Case Management’s Low severity level.
Advanced- Medium Severity Mapping	A comma-separated list of vendor-specific severity values that map to Blink’s Case Management’s Medium severity level.
Advanced- High Severity Mapping	A comma-separated list of vendor-specific severity values that map to Blink’s Case Management’s High severity level.
Advanced- Critical Severity Mapping	A comma-separated list of vendor-specific severity values that map to Blink’s Case Management’s Critical severity level.

---

Mapping Alert Severity to Blink’s System

Different security tools often report severity using their own scales—numeric values, labels, or custom levels. To ensure consistent prioritization in Blink, you can map these varying severity values, in the advanced settings of the Create Alert action, to Blink’s standardized severity levels (Low=1, Medium=2, High=3, Critical=4). For Example:

Example Payload:

{
  "id": "ind:bc44a7a3e758465f857867dcf4ac8c17:565469335361356727",
  "name": "FalseExecutableExtension",
  "description": "An executable was run with a contradicting file extension",
  "cmdline": "./whoami.rtf",
  "filename": "whoami.rtf",
  "filepath": "/Users/wilder/whoami.rtf",
  "alleged_filetype": "rtf",
  "platform": "Mac",
  "os_version": "Monterey (12)",
  "hostname": "DT-BART-SIMPSON",
  "user_name": "sam.gamgee",
  "md5": "32ff28d4fdb4b244c355d7f8378fa2b1",
  "sha256": "8d3f68b16f0710f858d8c1d2c699260e6f43161a5510abb0e7ba567bd72c965b",
  "severity": 50,
  "tactic": "Defense Evasion",
  "technique": "Masquerading",
  "timestamp": "2024-07-24T15:25:00Z",
  "falcon_host_link": "https://falcon.us-2.crowdstrike.com/activity-v2/detections/..."
}

In the Severity Parameter:

The incoming alert payload specifies a severity of 50.

In Advanced Settings:

A severity value of 50 is mapped to Blink’s High severity level, which corresponds to a severity rank of 3 in the output.You can customize these mappings to ensure external alert severity levels align with your internal triage and prioritization standards.

Blink’s severity levels are ranked as:

• Low = 1
• Medium = 2
• High = 3
• Critical = 4

---

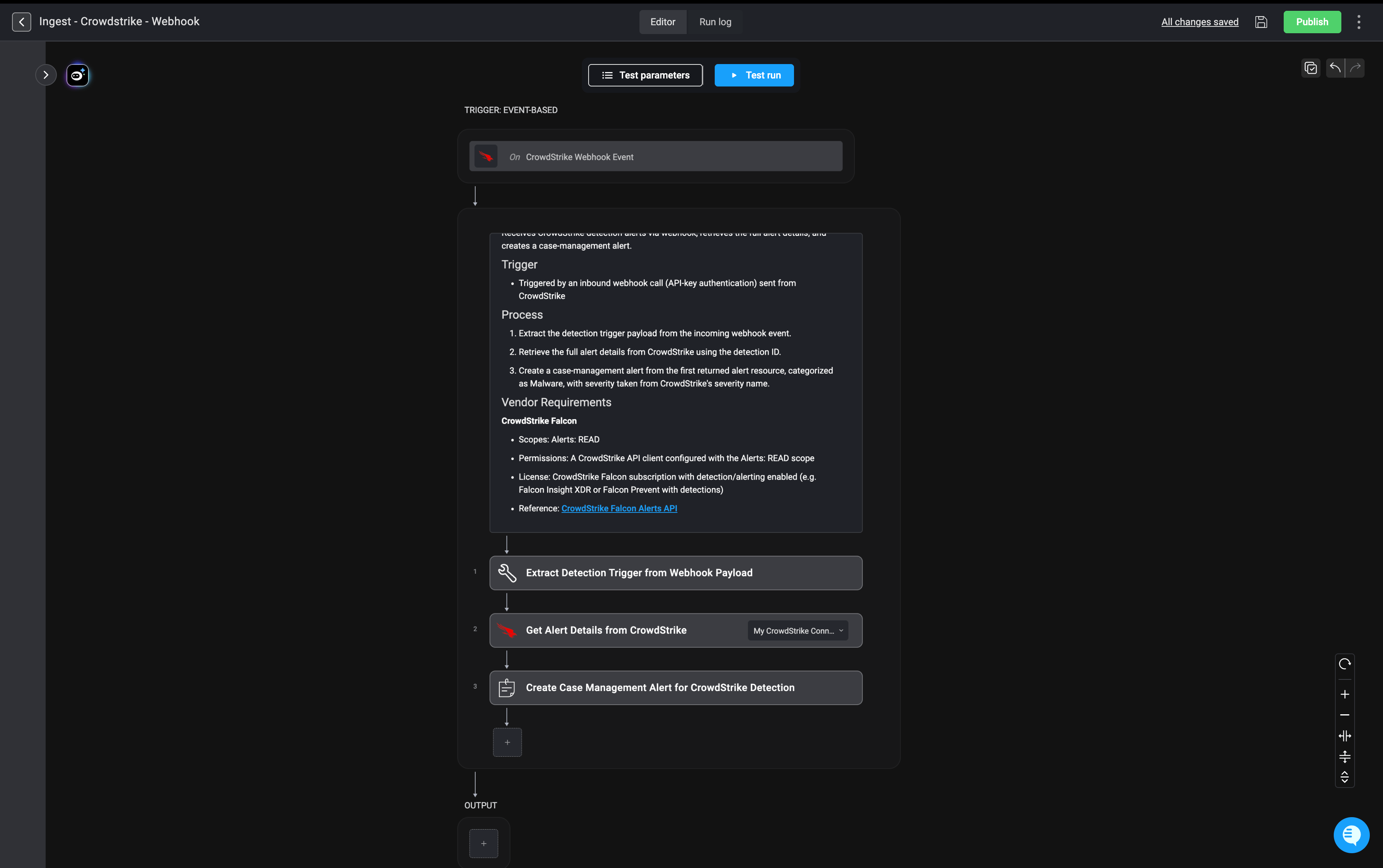

Example of an Alert Ingestion Workflow

This workflow ingests CrowdStrike detections into Blink Case Management platform and converts them into standardized alerts that analysts can investigate and respond to.

The workflow is triggered whenever CrowdStrike sends an alert detection event to a Blink webhook.

Once triggered, the workflow performs three steps:

1. Extract the detection information
2. The workflow parses the incoming webhook payload and retrieves the CrowdStrike detection ID.
3. Retrieve the complete alert details
4. Using the detection ID and the configured CrowdStrike connection, Blink queries CrowdStrike for the full alert record. This provides additional context that may not be included in the initial webhook payload.
5. Create a Case Management alert
6. Blink uses the first alert returned by CrowdStrike to create a new alert in Case Management. The alert is categorized as Malware, and its severity is mapped from CrowdStrike’s severity value.

The result is a fully populated Case Management alert that can continue through Blink’s investigation, enrichment, and response processes.
